Mazak Laser Technology / Fiber & Tube

Mazak Laser Cutting. Specified in kW, Not Adjectives.

OPTIPLEX fiber from 1.5 kW to 20 kW, FG Fabri Gear 4-axis tube laser to 406 mm diameter, and HCR-class CO2 for legacy non-metal work. Every configuration publishes kerf width, max-thickness per steel grade, assist-gas table and wall-plug efficiency — directly comparable on one datasheet.

Open Spec Compare Browse Machines
20 kWMax Fiber Power
42%Peak Wall-Plug
0.08 mmTypical Kerf @ 1 mm
33US States Serviced

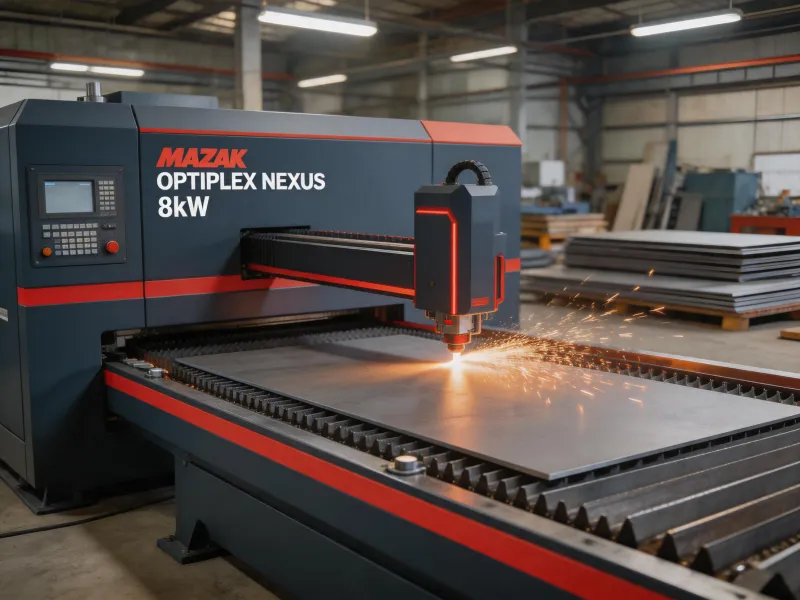

Mazak OPTIPLEX Nexus fiber laser cutting machine in a production fabrication shop OPTIPLEX NEXUS 8 kW / 1,500 × 3,000 mm BED
01 / Machine Line

Three Cutting Tracks. One Spec Language.

Flat-sheet fiber, 4-axis tube fiber, and legacy high-rigidity CO2 — each configuration published with the same kW / kerf / max-thickness / assist-gas / wall-plug matrix.

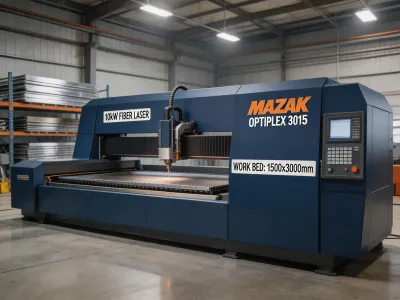

Mazak OPTIPLEX 3015 Fiber laser cutting machine 10 kW
Fiber / Flat Sheet
OPTIPLEX 3015 Fiber
6 / 8 / 10 kW
1,500 × 3,000 mm
25 mm MS @ 10 kW
Request spec →

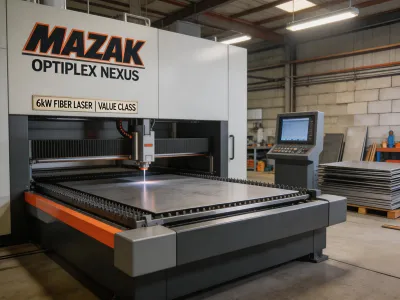

Mazak OPTIPLEX Nexus value-class fiber laser cutter
Fiber / Value Class
OPTIPLEX Nexus
4 / 6 / 8 kW
1,500 × 3,000 mm
19 mm MS @ 6 kW
Request spec →

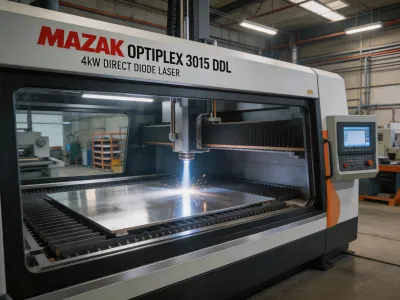

Mazak OPTIPLEX 3015 DDL direct diode laser cutter
DDL / Direct Diode
OPTIPLEX 3015 DDL
4 kW DDL
1,500 × 3,000 mm
Improved reflective alloy cutting
Request spec →

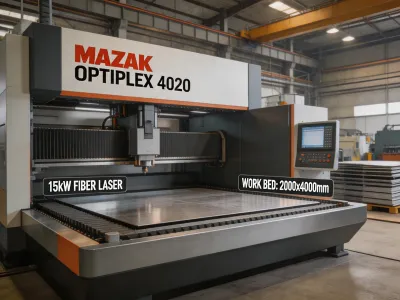

Mazak OPTIPLEX 4020 large format fiber laser cutting machine
Fiber / Large Format
OPTIPLEX 4020
10 / 12 / 15 kW
2,000 × 4,000 mm
32 mm MS @ 12 kW
Request spec →

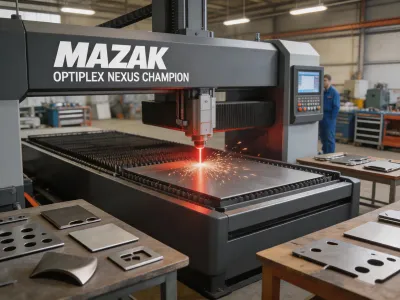

Mazak OPTIPLEX Nexus Champion tournament-grade fiber laser
Fiber / High-Mix
Nexus Champion
6 / 8 kW
1,500 × 3,000 mm
22 mm MS @ 8 kW
Request spec →

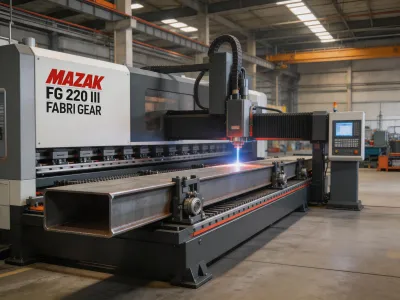

Mazak FG 220 III Fabri Gear 4-axis tube laser
Fiber / Tube 4-axis
FG 220 III
4 kW fiber
ø 220 mm × 8 m
12 mm wall
Request spec →

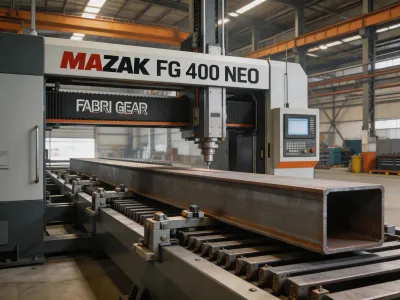

Mazak FG 400 Neo heavy-duty tube laser for structural steel
Fiber / Heavy Tube
FG 400 Neo
6 kW fiber
ø 406 mm × 12 m
16 mm wall
Request spec →

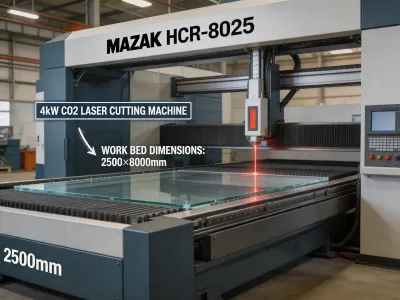

Mazak HCR-8025 high-rigidity CO2 laser cutting machine
CO2 / High-Rigidity
HCR-8025
4.0 kW CO2
2,500 × 8,000 mm
25 mm MS
Request spec →
20 kW Max Fiber Power, OPTIPLEX 4020
42% Peak Wall-Plug Efficiency (8-12 kW class)
110 m/min Positioning Head Speed, Thin-Sheet Class
33 US States with Field Service Coverage
02 / Why Mazak Laser

Engineering Claims Only Where They Can Be Audited.

AD-01

1.5–20 kW Fiber, One Matrix

OPTIPLEX Fiber, Nexus and FG tube laser published on a single ppm / kerf / max-thickness / wall-plug matrix, comparable by ISO 9013 edge class.

AD-02

Wall-Plug Efficiency, Disclosed

Every fiber configuration ships with a wall-plug efficiency value (typically 35–42% for 6–12 kW class) and a measured kWh/meter table across 1–25 mm mild steel.

AD-03

Edge Quality per ISO 9013

Cut-edge results characterised per ISO 9013 (perpendicularity tolerance u, mean peak-to-valley height Rz5). Samples provided before commissioning.

AD-04

Assist-Gas Economics, Line by Line

N2 vs O2 vs compressed-air cutting cost documented per sheet thickness. Includes nozzle schedule, dross handling and plate utilisation loss.

AD-05

SMOOTH CNC Docs Before PO

SMOOTH CNC release notes, maintenance schedules and consumable-part BOMs available under NDA before the PO — verify parts availability before capital commitment.

AD-06

Four-Tier US Service SLA

Tier 1 (24/7 emergency, 33 states), Tier 2 (next-business-day), Tier 3 (scheduled PM), Tier 4 (self-maintained with remote diagnostics). Coverage published per MSA.

03 / See It Cut

Nitrogen-Cut 12 mm Stainless at Full Wall-Plug.

OPTIPLEX Nexus 8 kW running a 12 mm 304 stainless rectangular part with nitrogen assist — sampled against ISO 9013 Class 1 edge target. Live kWh draw displayed on cabinet power meter.

See full cut condition sheet
NEXUS 8 kW / 12 mm 304 SS / N2
▶
04 / Sustainability

Measured per Machine. Not per Brochure.

Fiber-over-CO2 migration typically cuts wall-plug draw 40–60% for comparable metal throughput. Our published figures are the base for your facility energy modelling — not marketing averages.

40–60% Wall-Plug Reduction Fiber vs CO2 (Metal Cuts)
Closed-Loop Chiller & Assist-Gas Recovery Options
ISO 14001 Environmental Management System
05 / Standards & Supply Chain
IPG Photonics (Source) nLight (Source) ISO 9001:2015 ISO 14001 ISO 45001 CE Marked UL Listed FDA CDRH ANSI Z136.1

Have your specs ready? Get an RFQ in one business day.

Submit the fields you already filled in your internal CapEx brief. We’ll respond with a configuration, lead time and signed TCO estimate — not a brochure.

Submit RFQ Open Spec Compare
